A Technical Yet Simple Explanation And Where Samrat HPL Clearly Differentiates

One of the most common questions asked by architects, contractors, and even homeowners is:

“Does Exterior HPL absorb water?”

Because HPL is made using kraft paper layers, many people assume it behaves like wood or plywood. This is one of the biggest misconceptions in façade materials.

At Samrat HPL, Exterior Compact HPL is engineered with 100% phenolic resin technology, making it a high density, moisture-resistant structural composite, not a water-absorbing material.

With over 9 million square metres of Exterior HPL installed globally till 2025, Samrat HPL façades are already performing in:

  • Coastal climates
  • High humidity zones
  • Heavy rainfall regions
  •  Freeze–thaw environments

This real-world performance strongly validates its resistance to moisture.

First, Let’s Understand Water Absorption (In Simple Terms)

Water absorption means:

How much water a material can take inside its structure when exposed to moisture.

For comparison:

Material Typical Behaviour
Wood Absorbs water, swells
MDF Absorbs fast, deforms
Plywood Can swell over time
Fibre cement Absorbs moisture slowly
Exterior HPL Extremely low absorption

But why does Exterior HPL behave differently?

The answer lies in resin chemistry.

The Biggest Differentiator: 100% Phenolic Resin Core

This is where Samrat HPL stands apart technically.

Samrat HPL Core Technology:

  • 100% phenolic resin impregnation
  • High-pressure compact structure
  • Thermoset polymer matrix

Phenolic resins:

  • Are highly water-resistant
  • Do not dissolve in moisture
  • Do not soften under humidity
  • Form a dense, sealed structure

What Happens in Low-Cost HPL?

Many low-cost compact panels in the market use:

  • Urea-based resins

    Or

  • Mixed phenolic + urea systems

Why?

Because urea resin is:

  • Cheaper
  • Easier to process
  • Faster curing

But technically:

Property       Phenolic Resin   Urea Resin
Water resistance   Excellent        Poor–Moderate
Moisture stability       High Low
Outdoor suitability     Ideal Not recommended
Swelling risk         Very low Higher
Long-term durability         Strong       Limited

This is one of the most critical reasons Samrat HPL performs better in exterior conditions.

Scientific Explanation: Why Phenolic Resin Resists Water

When phenolic resin cures under high pressure and temperature:

  • It becomes a thermoset polymer
  • Forms a cross-linked molecular network
  • Creates a non-porous internal structure

This structure:

  • Blocks water penetration
  • Prevents swelling
  • Maintains dimensional stability

Think of it as converting paper into a stone-like engineered composite.

Actual Technical Numbers (For Clear Understanding)

Typical exterior-grade compact HPL performance:

  • Density: approx. 1350–1450 kg/m³
  • Water absorption after immersion: typically < 6%
  • Thickness swelling: extremely low
  • Surface water penetration: negligible

Because Samrat HPL uses 100% phenolic resin, moisture stability is significantly improved compared to mixed-resin boards.

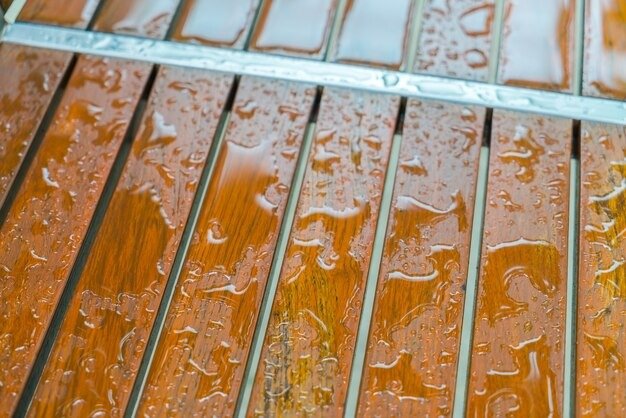

What Happens When Rain Hits Samrat HPL?

Scientifically:

  • Water stays on the surface
  • It does not easily penetrate inside
  • The dense phenolic structure blocks absorption

This is why Samrat HPL performs reliably in:

  • Continuous rain exposure
  • Coastal humidity
  • Wet–dry cycles

  Related dimensional behaviour is explained in:

“How Exterior HPL Handles Thermal Expansion & Contraction”

Why Low Water Absorption Is Critical for Facades

If a panel absorbs moisture, over time it can lead to:

  • Swelling near edges
  • Stress at fixing points
  • Micro-cracks
  • Delamination risks

This is why resin choice becomes critical.

Samrat HPL’s phenolic-rich core ensures:

  • Structural stability
  • Long-term durability
  • Low maintenance façade performance

Manufacturing Also Plays a Major Role

Samrat HPL panels are manufactured using:

  • High pressure pressing
  • High temperature curing
  • Controlled resin saturation

This creates:

  • Dense compact panels
  • Minimal internal voids
  • Strong moisture resistance

Full process explained in:

“How Exterior HPL Cladding Is Manufactured: Step-by-Step Process”

Surface Protection Adds Another Layer

Samrat HPL Exterior panels include:

  • EU-sourced decorative papers
  • 50-micron Plexiglass (PMMA) protective layer

While this layer mainly protects against UV, it also supports:

  • Surface durability
  • Resistance to environmental exposure

 UV stability explained in:

“UV Resistance in Exterior HPL: Why Colors Don’t Fade”

Moisture Stability + Strength + Impact Resistance

In real conditions, façade panels face:

  • Rain
  • Humidity
  • Impact
  • Wind loads
  • Temperature cycles

Samrat HPL’s dense phenolic structure supports performance across all of these.

Related performance topics:

A Proven Global Track Record – Samrat HPL

Numbers speak louder than claims.

With over 9 million m² of Exterior HPL installed globally till 2025, Samrat HPL façades are already exposed to:

  • Coastal humidity
  • Heavy rainfall regions
  • Cold European climates
  • Desert environments

This real-world presence proves:

  • Moisture stability
  • Structural durability
  • Long lifecycle performance

Why Architects Technically Prefer Samrat HPL

Samrat HPL differentiates because:

  • 100% phenolic resin core
  • Higher density structure
  • Better moisture resistance than mixed-resin panels
  • Stable performance in exterior conditions
  • Proven global installations

This makes it a true exterior-grade compact laminate, not just a standard board used outdoors.

Conclusion

Water absorption is one of the most misunderstood aspects of Exterior HPL.

Technically and scientifically:

  • Phenolic resin blocks moisture penetration
  • Dense compact structure prevents swelling
  • Urea-based low-cost panels perform weaker outdoors
  • Samrat HPL’s 100% phenolic system offers stronger stability

With:

  • Density ~1400 kg/m³
  • Very low water absorption
  • High-pressure compact manufacturing

and backed by 9 million square metres of global installations till 2025

Samrat HPL Exterior Cladding delivers reliable performance even in rain, humidity, and extreme climates.
